Nivedita Daimiwal* and Revati Shriram

Department of Instrumentation and Control,Cummins College of Engineering for Women, Pune, India.

Abstract

In this work, the effect of sensor placement on the prefrontal lobe for emotion classification is analyzed with the objective of achieving maximum classification accuracy. Photoplethysmography (PPG) signals are acquired from the prefrontal region by positioning sensors at the left, central, and right prefrontal locations.Prefrontal PPG signals are recorded for two emotional states, namely happy, sad. A six-level wavelet decomposition is performed on the acquired PPG signals to obtain approximation (A6) and detail (D6) coefficients. Statistical features such as mean, variance,energy, and entropy are extracted from the wavelet-decomposed signals.The extracted features from the original PPG signal, as well as from the A6 and D6 components, effectively discriminate among different emotional states. The results demonstrate significant variations in statistical feature values across emotions. Furthermore, box plot analysis reveals that the differentiation between happy and sad emotions is more pronounced in the central prefrontal PPG signals compared to the left and right prefrontal signals. Consequently, features derived from the central prefrontal PPG signal are identified as more suitable for emotion classification. Central Prefrontal CPPG: Difference in mean between Happy and Sad is 35.58 and difference in variance between Happy and Sad 2924.66 for central A₆ scale. For central D₆ scale difference in variance between Happy and Sad is 1.14E+006. Difference in energy between Happy and Sad is 7176 and difference in entropy between Happy and Sad is 8.8E+006 for central A₆ scale. For central D6 scale difference in energy between happy and sad 4422.59 and   difference in entropy between Happy and Sad is 1.14E+006.

Keywords

Classification; Emotions; Prefrontal Photoplethysmogram; Statistical Features; Wavelet

Introduction

Human emotions can be identified through the analysis of physiological signals. Emotion recognition research has shown significant advancement and is broadly categorized into two approaches first based on multichannel physiological signals and second based on multimodal signals. Feature extraction and dimensionality reduction play a crucial role in improving the performance of emotion recognition systems.

Electroencephalography (EEG) is a key component in multichannel emotion recognition systems. In multimodal emotion recognition, fusion of two or more physiological signalssuch as EEG, ECG, PPG, GSR, and EMGis commonly employed to enhance classification accuracy. Cranial photoplethysmography (cPPG) is a novel signal acquired through the combination of EEG and PPG, obtained by placing an optical reflectance-type PPG sensor on the prefrontal lobe.

An optical sensor comprising an infrared (IR) light source and an optical detector is positioned on the prefrontal lobe while subjects are exposed to auditory stimuli associated with happy and sad emotions. The cPPG signal is recorded by placing the sensor at the left, central, and right positions of the prefrontal lobe.

The objective of this study is to identify the optimal sensor placement on the prefrontal lobe that provides maximum signal discrimination for accurate emotion detection.^1-10

Materials and Methods

The CPPG signal is recorded under two emotional states, namely happy and sad. These emotions are elicited by having the subject listen to Hindi songs corresponding to each emotional category for a few minutes. During each emotional stimulus, the CPPG signal is acquired for a duration of 5 seconds.

CPPG sensors are properly positioned on the left, central, and right prefrontal regions of the subject’s scalp. For each emotional state, CPPG signals are recorded from all three prefrontal locations.

To ensure high-quality signal acquisition and to minimize the effects of noise and motion artifacts, the subject is instructed to remain still throughout the measurement process.^10-12 System block diagram and subject while signal acquisition is shown in figure1.

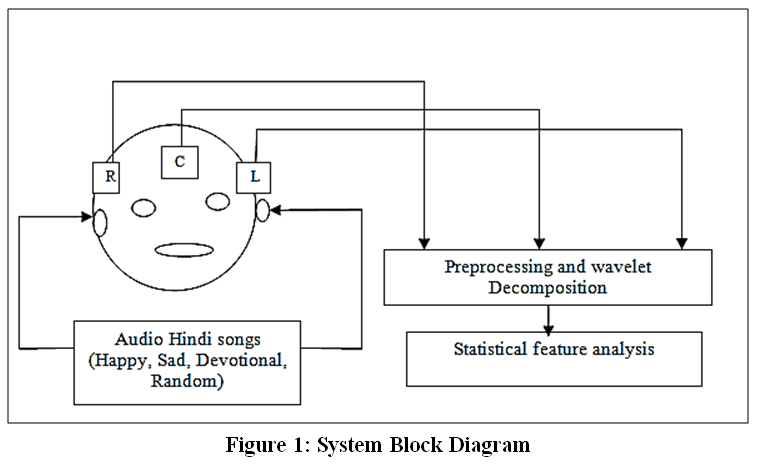

Figure 1: System Block Diagram   Click here to view Figure

Statistical Features

CPPG signal is decomposed and features that can discriminate between different activity. The features used include some wavelet based features and some statistical features of CPPG signal Wavelet Based Features: Mean, variance, Energy, entropy, used as parameters after wavelet decomposition shown in Figure 2.^13-23 CPPG is  captured for various emotions. After training the classifier with features calculated from CPPG signals of 10 patients, the KNN classifier was then tested with the features from 10 specimens that were not included for training the classifier.

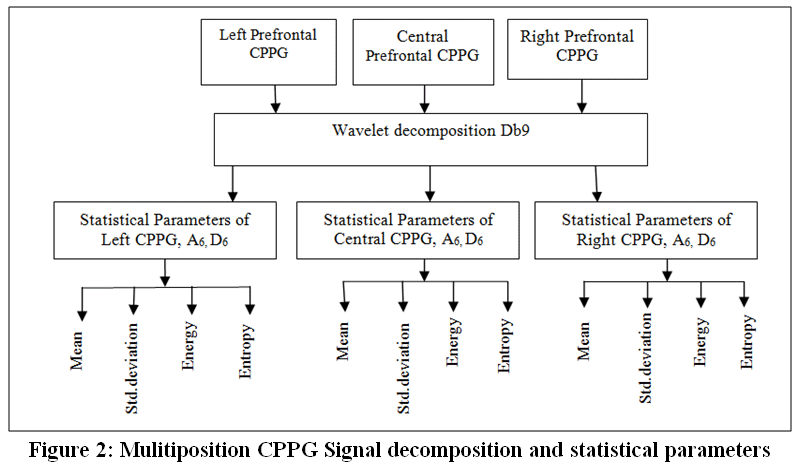

Figure 2: Mulitiposition CPPG Signal decomposition and statistical parameters   Click here to view Figure

The study was carried out in Cummins College of Engineering for Pune. India, the following parameters were recorded  before capturing the signal are subject name, age, height, body temperature, blood pressure, heart rate, sugar and SPO2. All the volunteers were healthy for the duration of the experiment as shown in table 1. Oral consent was taken before capturing the data . Data collection was done on subjects in the age group of  20-60 years. A six level wavelet decomposition of CPPG signal is performed using Daubechies 9 and statistical features are calculated.The CPPG signals for happy and sad emotions are decomposed using wavelet transform to different wavelet sub-bands based on their frequency content.

Table 1: Parameters Recorded Before CPPG Acquisition

The CCPG signal is acquired using  instrumentation amplifier and AVR ATmega 8535 microcontroller is used for digitizing the signal with sampling frequency 100 samples per second and transmitting  the data on to the computer. Hardware filters are incorporated  to remove the artifact  40 Hz LPF and 50 Hz notch filter.  It is on this platform the signal is further processed and analysed.

Support Vector Machines (SVM) linear, K nearest neighbour (KNN) and Artificial Neural Network ( ANN) are used  to classify the emotions using CPPG  signal. After training the classifier with features calculated from CPPG signals of 10 patients, the KNN classifier is tested with the features from 10 specimens that were not included for training the classifier.

Features: Mean, variance, standard deviation, Energy, entropy, used as parameters after wavelet decomposition.¹³

Mean at each decomposition level is calculated using equation (1)¹³

Standard deviation   at each decomposition level is calculated using equation (2) ¹³

Energy at each decomposition level is calculated using equation (3)¹³

Where,

N = The number of coefficients of detail or approximation at each decomposition level.

Entropy at each decomposition level is calculated using equation (4).¹³

Figure 3: Happy LEFT Prefrontal CPPG   Click here to view Figure

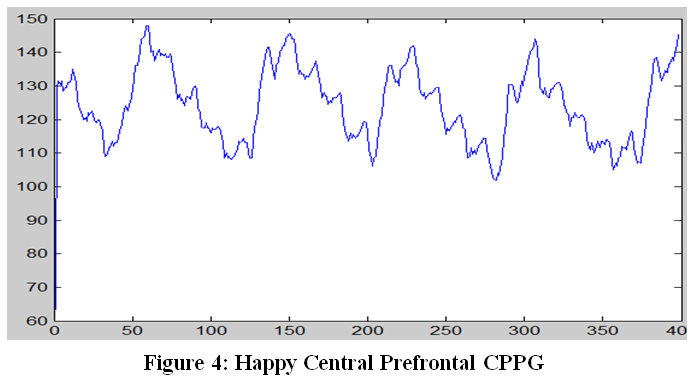

Figure 4: Happy Central  Prefrontal CPPG   Click here to view Figure

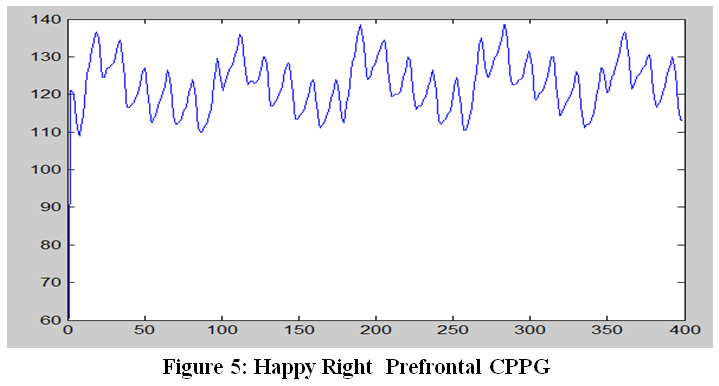

Figure 5: Happy Right  Prefrontal CPPG   Click here to view Figure

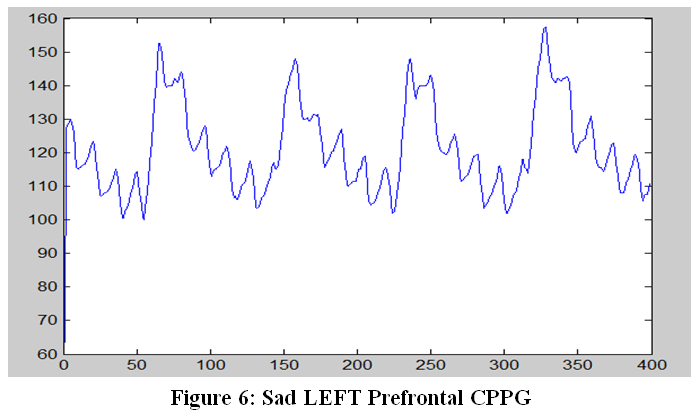

Figure 6: Sad LEFT Prefrontal CPPG   Click here to view Figure

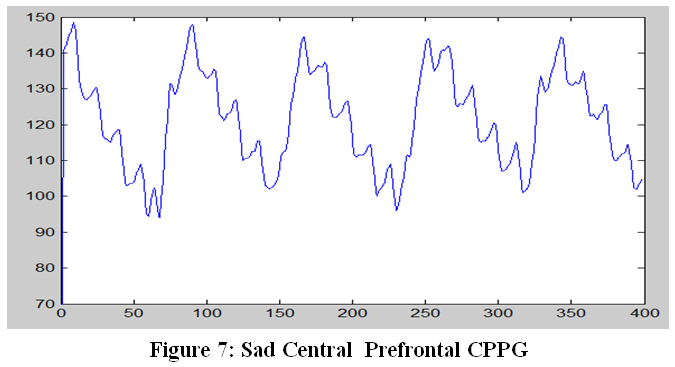

Figure 7: Sad Central  Prefrontal CPPG   Click here to view Figure

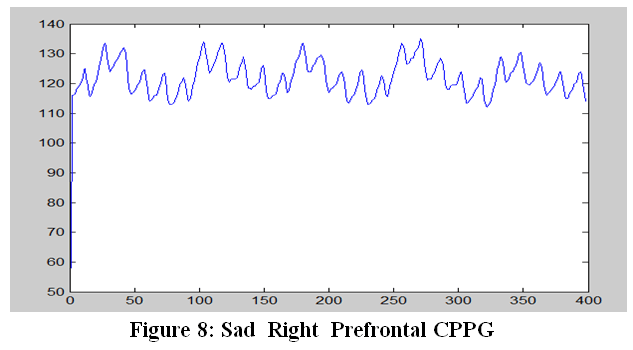

Figure 8: Sad  Right  Prefrontal CPPG    Click here to view Figure

  Db9 shows similarity with the shape of the normal PPG signal. Therefore, it is chosen for analysis of the CPPG signals. The wavelet function of Daubechies 9 is shown in the Figure 9.

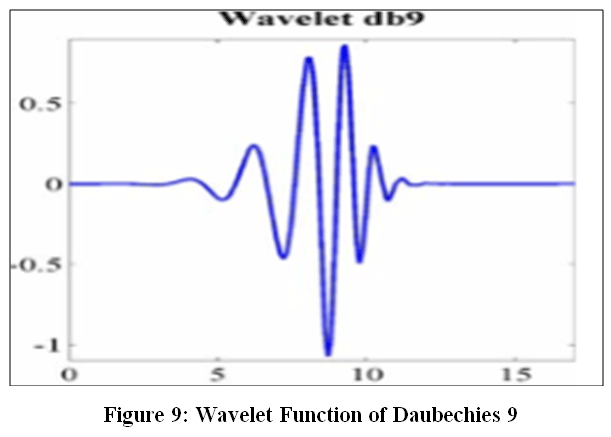

Figure 9: Wavelet Function of Daubechies 9   Click here to view Figure

Six level wavelet decomposition of  CPPG signal is performed. Spectral analysis of all six levels is performed. The signal frequency is detected in D6 level. Statistical feature of main signal and A6 and D6 are extracted.¹³

The spectral analysis of reconstructed signals it is found that the centre frequency of A6 is at 1.953 Hz. The higher frequency part of the signal is found in D4 –scale and the centre frequency is 17.58 Hz, D5-9.766Hz and D6- 3.906 Hz.  Centre frequency of D1- 140.6 Hz, D2-74.22 and D3 – 46.88 Hz consist of predominantly the noise part of the signal.  The signal frequency is detected in D6  and A6 level. Statistical feature of main signal and A6 and D6 are extracted.

Results

CPPG (Cranial Photoplethysmogram) for different emotions are shown in Figure 3 to Figure 8. Table 2, Table 3 and Table 4 shows the statistical parameters of left central and right Prefrontal PPG Signal.

Table 2: Statistical Parameters of Left Prefrontal PPG

Table 3: Statistical Parameters of Central Prefrontal PPG

 Table 4: Statistical Parameters of Right Prefrontal PPG

Figure 10, Figure 11, Figure 12 and Figure 13 shows the plot for mean, variance, energy and entropy respectively.

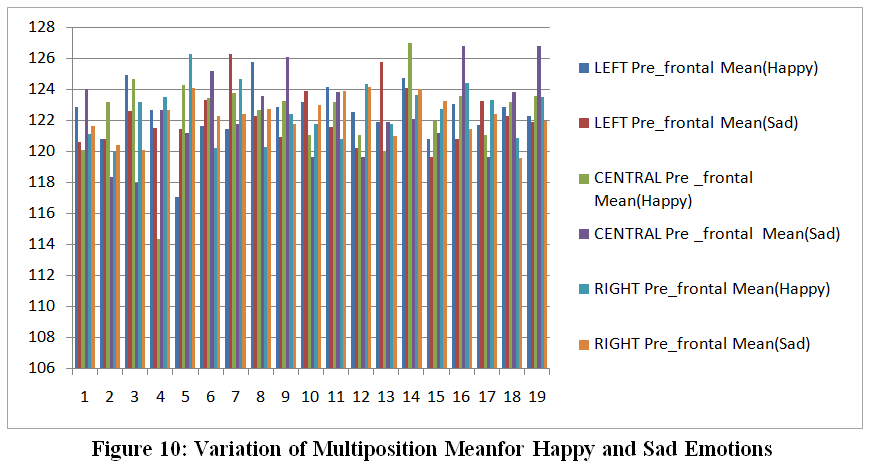

Figure 10: Variation of Multiposition Meanfor Happy and Sad Emotions   Click here to view Figure

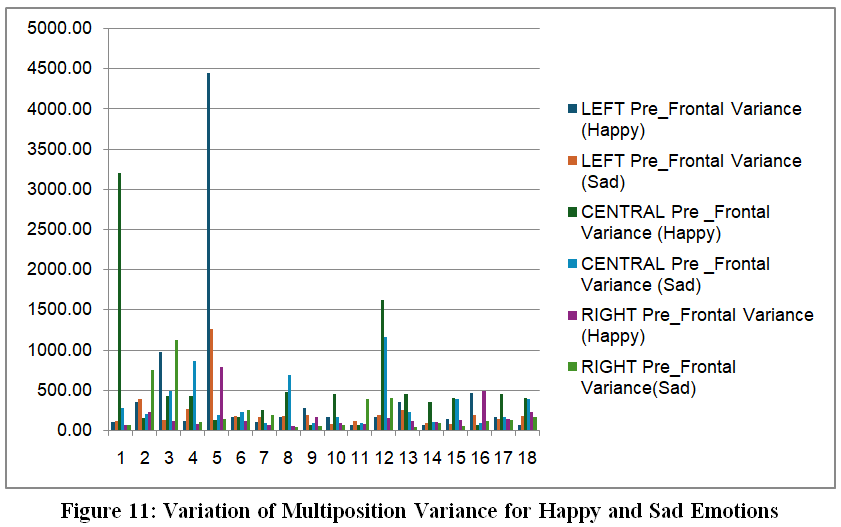

Figure 11: Variation of Multiposition Variance for Happy and Sad Emotions   Click here to view Figure

Figure 12: Variation of Multiposition Eenergy for Happy and Sad Emotions   Click here to view Figure

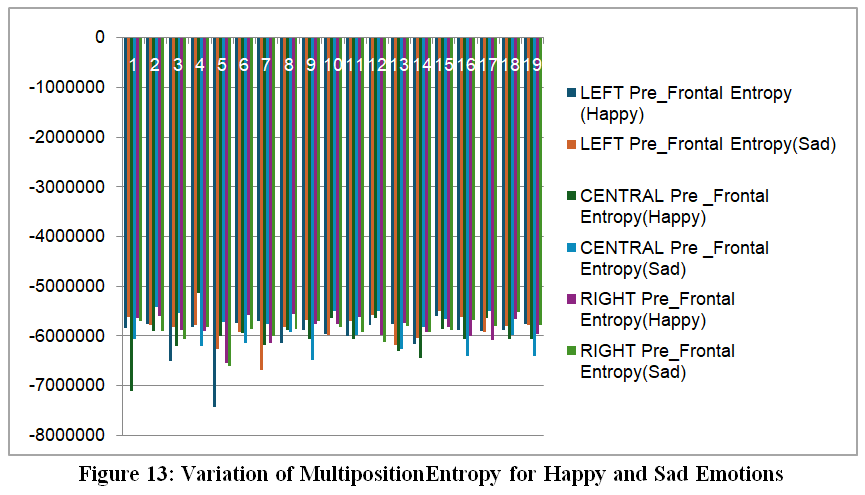

Figure 13: Variation of Multiposition Entropy for Happy and Sad Emotions   Click here to view Figure

Table 5, Table 6 and Table 7 shows the statistical features. Box plots provide a visualization of summary statistics for sample data which is nothing but the statistical  parameters  for each  CPPG of the  three positions  for a number of subjects. The sample data is calculated for 21 subjects  for  happy and  sad the  box-plots are plotted. Each box-plot contains the following features:

Table  5: Statistical values of Central  Prefrontal CPPG signal

Table 6: Statistical values of Left  Prefrontal CPPG signal

Table 7: Statistical Values of Right Prefrontal CPPG Signal

Discussions

Statistical Analysis at Central Prefrontal CPPG

For central PPGsignal  mean and variance values for happyare124.69 and 425.87 respectively and for sad 117.98and 490.98respectively. Difference in mean between Happy and Sad is 6.71and difference in variance between Happy and Sad  65.11.

For central A₆ scale mean and variance values for happy are 934.02 and 6357 respectively and for sad 969.568 and 3432.34 respectively. Difference in mean between Happy and Sad is 35.58 and difference in variance between Happy and Sad 2924.66.

For central D₆ scale mean and variance values for happy are 6337.6 and 9.228E+006 respectively and for sad   1915.01   and 8.085E+006   respectively. Difference in mean between happy and sad is 4422.59. For central D₆ scale difference in variance between Happy and Sad is 1.14E+006.

For central PPG signal energy and entropy values for happy are6372786.75 and-62023464.36 respectively and for sad5749671.50  and -55449269.20respectively. Difference in energy between Happy and Sad is 623115.25  and difference in entropy between Happy and Sad is 6.57E+006

 For central A₆ scale energy and entropy values for happy are 899187 and -2.647E+008 respectively and for sad 892011 and -2.735E+008 respectively. Difference in energy between Happy and Sad is 7176 and difference in entropy between Happy and Sad is 8.8E+006.

For central D₆ scale energy and entropy values for happy 6337.6 and 9.228E+006 respectively and for sad   1915.01   and 8.085E+006   respectively. For central D6 scale difference in energy between happy and sad 4422.59 and   difference in entropy between Happy and Sad is 1.14E+006.

Statistical Analysis at Left Prefrontal CPPG

For left PPG signal  mean and variance values for happy are 122.69and115.99respectively and for sad are 121.50 and 258.19respectively. Difference in mean between Happy and Sad is 1.19and difference in variance between happy and sad  142.2.

For left A₆ scale mean and variance values for happy are 940.053 and 3354.72respectively and for sad are  944.013 and 1969.59 respectively. Difference in mean between Happy and Sad is 3.96 and difference in variance between happy and sad 1385.13.

For left D6 scale mean and variance values for happy are 2996.35 and 1.711E+007    respectively and for sad are 2640.63 and 1.6025E+007 respectively. Difference in mean between happy and sad   is 355.72 and difference in variance between Happy and Sad is 1.08E+006.

For left PPG signal  energy and entropy values for happy are 6052535.75    and-58359672.86respectively and for sad are5993139.25  and -57842681.89respectively. Difference in energy between Happy and Sad is 59396.25  and difference in entropy between Happy and Sad   5.16E+005.

 For left A₆ scale energy and entropy values for happy are 884758    and-2.69E+008   respectively and for sad are 891916and -2.67E+008  respectively. Difference in energy between Happy and Sad is 7158 and difference in entropy between Happy and Sad 2.0E+006.

For left D6 scale energy and entropy values for happy are 3178.28 and -1.122E+010   respectively and for sad are 2688.58   and -8.99E+009 respectively. Difference in energy between Happy and Sad is 489 and difference in entropy between Happy and Sad is 2.23E+009.

Statistical Analysis at Right Prefrontal CPPG(pending)

For right A₆ scale mean and variance values for happy are 937.214 and 1295.76 respectively and for sad are 944.294 and 2580 respectively. Difference in mean between Happy and Sad is 7.08 and difference in variance between happy and sad is 1284.24.

For right A₆ scale mean and variance values for happy are 937.214and 1295.76respectively and for sad are 944.294 and 2580respectively. Difference in mean between Happy and Sad is 7.08 and difference in variance between happy and sad is 1284.24.

For right D₆ scale mean and variance values for happy are 2156.49and 9.228E+006respectively and for sad are 1915.01 and 8.085E+006   respectively. Difference in mean between happy and sad is 241.48 and difference in variance between Happy and Sad is 1.143E+006.

For right A₆ scale energy and entropy values for happy are 879257 and -2.647E+008 respectively and for sad are 892011 and -2.735E+008 respectively. Difference in energy between Happy and Sad is 12754 and difference in entropy between Happy and Sad 9.0 E+006.

 For right A₆ scale energy and entropy values for happy are 879257and -2.647E+008respectively and for sad are 892011 and-2.735E+008 respectively. Difference inenergy between Happy and Sad is 12754 and difference in entropy between Happy and Sad 9.0 E+006.

For rightD₆ scale energy and entropy values for happy 15665.1 and -5.34E+009respectively and for sad 15548.2 and -4.38E+009respectively. Difference in energy between Happy and Sad is116.9 and difference in entropy between Happy and Sad is 9.6E+008.

The CPPG signals for happy and sad emotions are decomposed using wavelet transform to different wavelet sub-bands based on their frequency content. Support Vector Machines (SVM) linear, K nearest neighbour (KNN) and ANN are used to classify the emotions using CPPG  signal..

For all feature comparisons f-Test two sample for variances is carried out with α=0.05  and p value =0.00022 is shown in Table  8.  The accuracy of the KNN classifier is observed to be 80%, SVM classifier 60% and ANN classifier 70%. Results are shown in Table 9.

Table  8 : F-Test Two-Sample for Variances

Table  9: Classification Report

Conclusion

The signal is recorded at three positions: left, central and right prefrontal position. The signal is decomposed at sixth level by Daubechies wavelet, level as the central frequency of 6^th level matches with signal frequency.  After sixth level decomposition statistical analysis was done. The above analysis reveals that these multi position, subbands level statistical features can help to detect and localize the activity and emotions. It is observed that statistical values are different for different emotions. As the difference in the statistical parameters was found to be more in central prefrontal PPG with respect to left and right prefrontal PPG. So the features of central PPG can be used for classification of emotions. It reduces the data base and system complexity for optimal result.

Acknowledgement

We would like to express our sincere gratitude to all those who contributed to the successful completion of our research paper titled “EEG-Based Analysis of Chakra Meditation Using Audio Frequencies.” First and foremost, we are deeply thankful to Dr. Padma Pushpakala and Dr. M Sundararajan for their invaluable guidance, constant encouragement, We are also grateful to the Department of Instrumentation and Control, Cummins College of Engineering for Women, Pune, India, for providing the necessary resources and a conducive environment to carry out this research.

Funding Sources

The author(s) received no financial support for the research, authorship, and/or publication of this article

Conflict of Interest

The author(s) do not have any conflict of interest.

Data Availability Statement

This statement does not apply to this article. The Data is captured in the Cummins college of Engineering for Women.

Ethics Statement

Verbal consent was recorded from the participants before participating in this study.

Informed Consent Statement

This study did not involve human participants, and therefore, informed consent was not required.

Clinical Trial Registration

This research does not involve any clinical trials.

Permission to reproduce material from other sources

Not Applicable

Author Contributions

• Nivedita Daimiwal: Conceptualization, Methodology, Writing – Original Draft, Data Acquisition. Analaysis.
